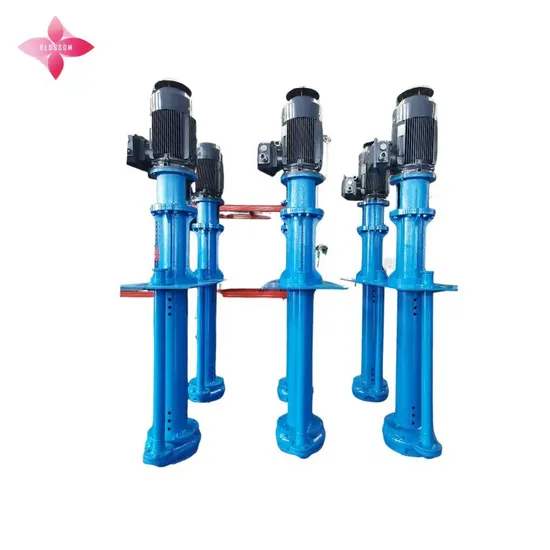

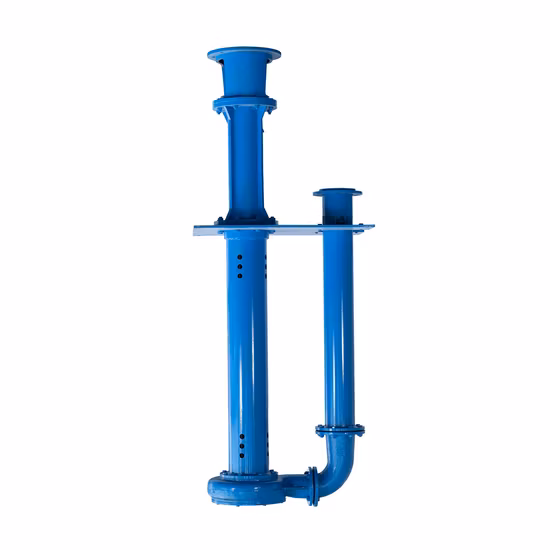

Industrial Submerged Electric Pump Mineral Processing Mining Centrifugal Submersible Slurry Pump with High Head and Large Flow Zone Stirring
Overview Industrial Submerged Electric Pump Mineral Processing Mining Centrifugal Slurry Pump with high head and large f
Send your inquiryDESCRIPTION
Basic Info
Model NO. | LYJ |
Working Pressure | High Pressure Pump |
Influent Type of Impeller | Double-Suction Pump |
Position of Pump Shaft | Horizontal Pump |
Pump Casing Combined | Horizontal Split Pumps |
Mounting Height | Suction Centrifugal |
Impeller | Closed |
Usage | Pump, Pumps, Condensate Pump, Ash Pumps, Circulating Pump, Electrolyte Solution |
Processing Medium | Corrosive / Abrasive Slurry Containing Solid Parti |
Medium Temperature | 60 Degrees Celsius |
Color | Customized |
Speed | 490-1480 R/Min |
MOQ | 1 Set |
Transport Package | Standard Wooden Box |
Specification | customized |
Trademark | Sunrise |
Origin | Jiangsu, China |
HS Code | 8413709990 |
Production Capacity | 200 Sets/Month |
Product Description
Industrial Submerged Electric Pump Mineral Processing Mining Centrifugal Slurry Pump with high head and large flow zone stirringProduct DescriptionOVERVIEWThe new wear-resistant corundum-lined slurry pump is an innovative product independently designed and developed by our company in order to meet the requirements of users and adapt to the working conditions of conveying strong corrosion and high wear media. The flow parts are all made of wear-resistant corundum material, which has the characteristics of wear resistance and corrosion resistance, high efficiency and energy saving, stable operation and convenient maintenance.LYJ SERIES SUBMERGED SLURRY PUMP
LYJ Series Submerged Slurry Pump Features:1. Single-layer shell, metal structure.2. Direct or belt drive.3. The moving bearing is lubricated with grease. LYJ SERIES SUBMERGED SLURRY PUMP
LYJ Series Submerged Slurry Pump Features:1. Single-layer shell, metal structure.2. Direct or belt drive.3. The moving bearing is lubricated with grease.Product Parameters
Type | Speed / n | Capacity / Q | Head / H | Power of Shaft Pa | Eff. | Particle Max. Size (mm) | Motors |
R/min | m³/h | m | kw | % | |||
150LYJ-50 | 730 | 150 280 350 | 24 22 18.9 | 16.3 22.4 25.2 | 60 75 70 | 20 | Y315S-8 V1 380V 55KW |
150LYJ-50 | 590 | 121 226 283 | 15.7 14.4 12.3 | 8.6 11.8 13.5 | 60 75 70 | 20 | Y315S-10V1 380V 45KW |
150LYJ-35 | 980 | 198 332 364 | 17.9 13.2 12.1 | 15.3 17.5 18.0 | 63.1 68.1 66.8 | 15 | Y250K-6 V1 380V 37KW |
150LYJ-35 | 730 | 147 247 271 | 10.0 7.3 6.7 | 6.3 7.2 7.4 | 63.1 68.1 66.8 | 15 | Y200L-8 V1 380V 15KW |
150LYJ-35 | 590 | 119 200 219 | 6.5 4.8 4.4 | 3.3 3.8 3.9 | 63.1 68.1 66.8 | 15 | Y160L-6 B3 380V 11KW |
100LYJ-34 | 1480 | 157 214 293 | 36.8 32.6 24.4 | 26.1 29.2 33.5 | 60.2 65.1 58.2 | 10 | Y255M-4 V1 380V 45KW |
100LYJ-34 | 970 | 103 140 192 | 15.8 14.0 10.5 | 7.4 8.2 9.4 | 60.2 65.1 58.2 | 10 | Y180L6 V1 380V 15KW |
80LYJ-36 | 1480 | 105 144 201 | 45.5 41.4 32.5 | 25.0 27.9 32.8 | 52.1 58.2 54.2 | 10 | Y225M-4 V1 380V 45KW |
80LYJ-36 | 970 | 69 94 132 | 19.5 17.3 14.0 | 7.0 7.8 9.3 | 52.1 58.2 54.2 | 10 | Y180L-6 V1 380V 15KW |
65LYJ-30 | 1470 | 38 58 98 | 34.7 31.9 26.0 | 8.2 9.7 13.4 | 43.7 51.9 51.7 | 8 | Y180M-4 V1 380V 18.5KW |
65LYJ-30 | 960 | 25 38 64 | 14.8 13.6 11.1 | 2.3 2.7 3.7 | 43.7 51.9 51.7 | 8 | Y132M2-6 B5 380V 5.5KW |
500LYJ-20 | 1440 | 17.1 24.7 38 | 10.7 9.2 6.0 | 1.4 1.6 2.0 | 34.9 38.6 31.2 | 10 | Y112M-4 B5 380V 4KW |
500LYJ-20 | 910 | 10.8 15.6 24 | 4.3 3.7 2.4 | 0.4 0.4 0.5 | 34.9 38.6 31.2 | 10 | Y90L-6 B5 380V 1.1KW |
40LYJ-B25 | 1440 | 10.1 18.4 22.9 | 21.5 19.0 16.8 | 2.3 2.6 2.8 | 26.1 36.6 37.6 | 8 | Y132S-4 V1 380V 5.5KW |
40LYJ-B25 | 910 | 6.4 11.6 14.5 | 8.6 7.6 6.7 | 0.6 0.7 0.7 | 26.1 36.6 37.6 | 8 | Y90L-6 V1 380V 1.1KW |
40LYJ-A21 | 1440 | 9.5 20.3 25.9 | 17.0 15.3 14.1 | 1.6 2.0 2.2 | 27.9 42.4 44.6 | 10 | Y112M-4 V1 380V 4.0KW |
40LYJ-A21 | 910 | 6.0 12.8 16.4 | 6.8 6.1 5.6 | 0.4 0.5 0.6 | 27.9 42.4 44.6 | 10 | Y90L-6 V1 380V 1.1KW |
OTHER SPECIFICATIONS WELCOME TO COMMUNICATE WITH US IN DETAIL! SPARE PARTSOur AdvantagesPackaging & Shipping
STANDARD WOODEN BOX PACKAGE
Company Profile FAQ1. who are we?We are based in Jiangsu, China, start from 2014,sell to North America(30.00%),South Asia(10.00%),South America(10.00%),Eastern Asia(10.00%),Mid East(10.00%),Southeast Asia(10.00%),Africa(9.00%),Oceania(8.00%),Western Europe(2.00%),Domestic Market(1.00%).2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?ICJ standard chemical pump, IZA chemical process pump, ICZ chemical process pump, ICPD multi-stage centrifugal Heart pump, 2BE1 vacuum pump, QS large submersible pump, ZMJ slurry pump, TLB desulfurization pump, ZXB self-priming pump, ICY submerged pump, OSJ split pump and ICF fluorine-lined pump.4. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Russian
In order to ensure the fastest feedback and correct quotation for you, we need to know the following information:1. Inlet diameter2. Outlet diameter3. Working conditions4. Head(m)5. Particle size & content6. pHWELCOME TO INQUIRY!Related Products
-
